Industrial Box Ridge Vent - Redefining Ridge Ventilation

1. Unmatched Ventilation Performance: Compared to existing gravity ridge vents, our Box Ridge Vent delivers an astounding three times the ventilation capacity. This ensures enhanced airflow, maintaining optimal conditions in industrial spaces.

2. 100% Leak-Proof Design: Say goodbye to water infiltration worries. The Box Ridge Vent is meticulously crafted to provide complete leak-proof protection, even in extreme weather conditions.

3. Customizable Sizes: Available in a variety of sizes, the Industrial Box Ridge Vent can be tailored to meet your specific needs. Its modular design allows for seamless installation to any length, accommodating diverse project requirements.

4. Durability and Longevity: Built to last, our Box Ridge Vent boasts a lifespan of over 20 years. It’s a maintenance-free solution with an “install and forget” approach, giving you peace of mind for decades.

5. Noise-Free Operation: Unlike traditional ridge vents, the Box Ridge Vent operates silently, ensuring a noise-free environment.

Key Features:

Why Choose Our Industrial Box Ridge Vent?

• Energy Efficiency: Reduce energy costs by improving natural ventilation and minimizing dependency on powered systems.

• Eco-Friendly Solution: Promotes sustainable practices by leveraging gravity-based airflow without mechanical support.

• Easy Installation: Designed for effortless setup, the Box Ridge Vent integrates seamlessly into existing or new structures.

Applications:

• Ideal for:

  • Industrial facilities

  • Warehouses

  • Manufacturing units

  • Agricultural structures

  • Large commercial buildings

Specifications:

• Material: High-quality, corrosion-resistant components

• Sizes: Customizable to fit project-specific requirements

• Ventilation Efficiency: Three times greater than standard gravity ridge vents

• Maintenance: Zero maintenance needed post-installation

Experience the Difference

Upgrade to the Industrial Box Ridge Vent and revolutionize your ridge ventilation system. Enjoy superior performance, unmatched durability, and peace of mind with a solution designed to set new benchmarks in the industry.

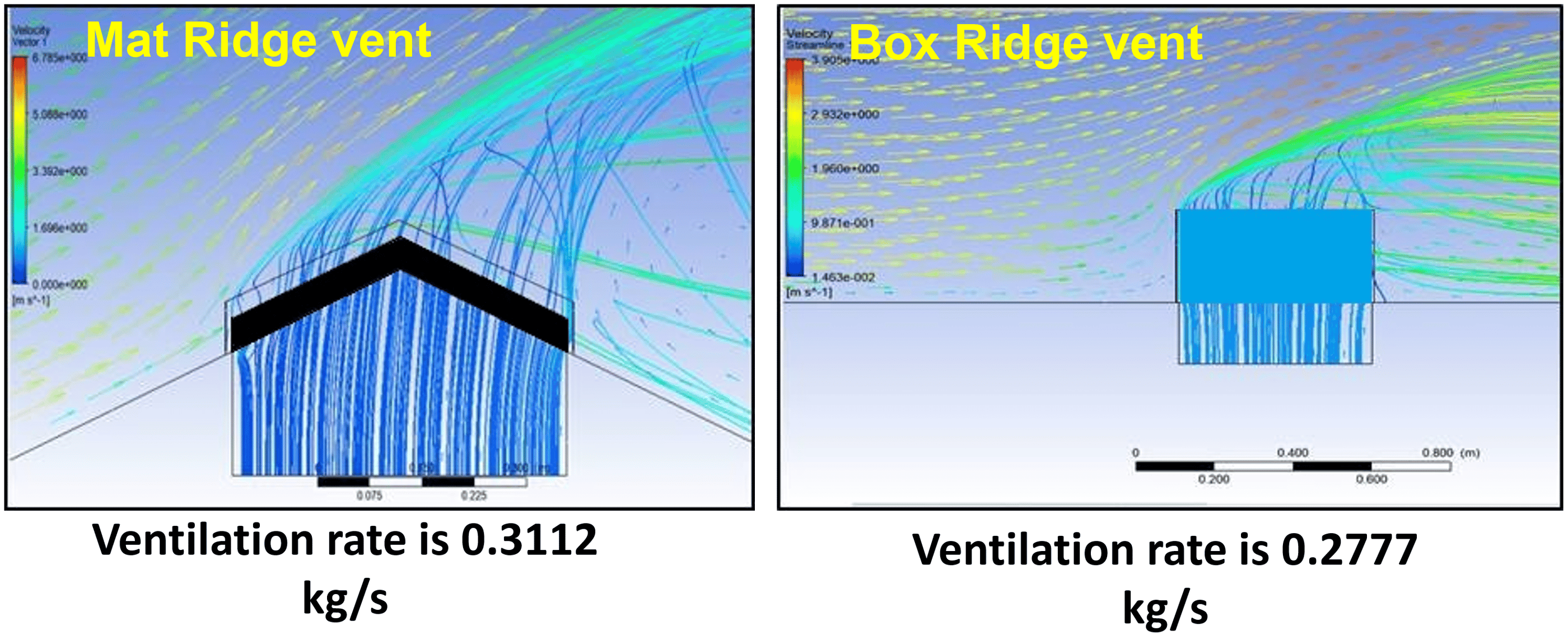

Performance Comparison: Box Ridge Vent vs. Existing Ridge Vent

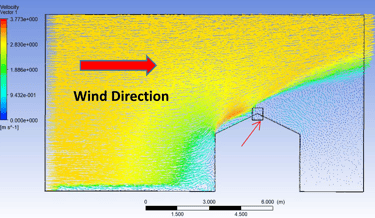

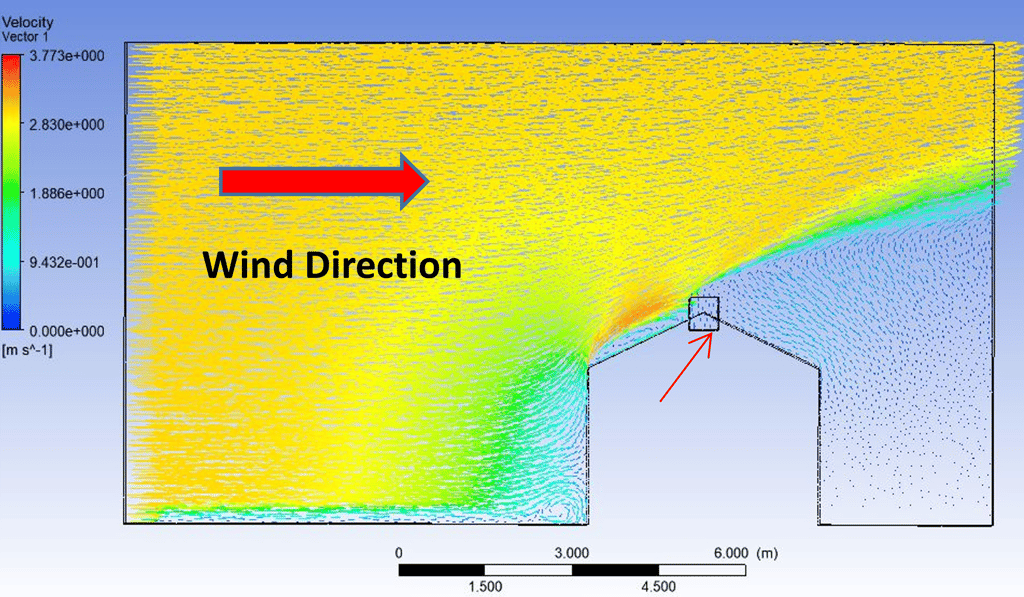

CFD Test Setup

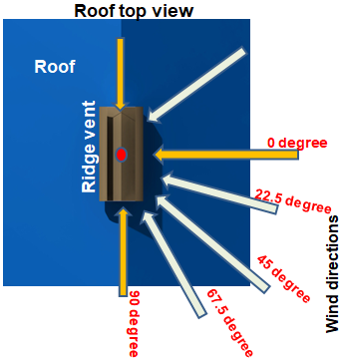

Ventilation Discharge Rate in Different Wind Directions

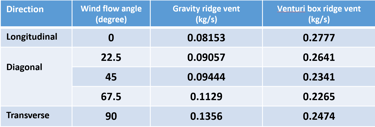

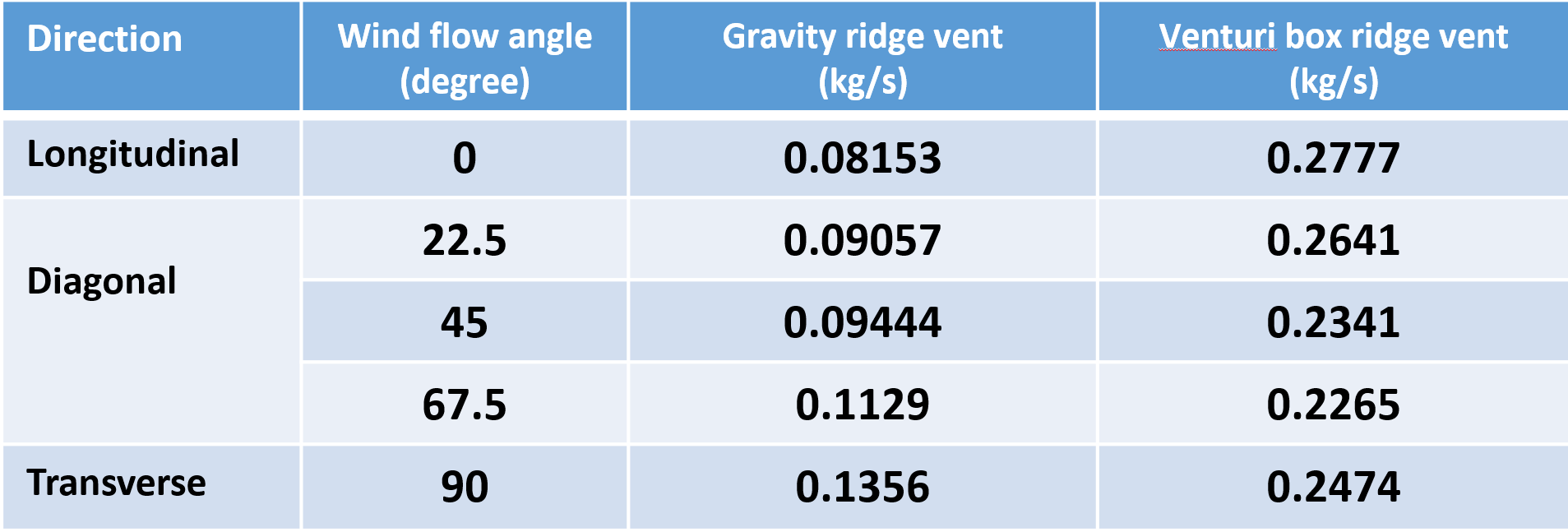

The discharge rates of gravity ridge vents and Venturi box ridge vents were analyzed across various wind flow angles. The results are summarized below:

To evaluate the performance of ridge vents, a Computational Fluid Dynamics (CFD) analysis was conducted under the following boundary conditions:

• Wind Velocity: 0.5 to 18 m/s

• Roof Pitch: 0° to 25°

• Ridge Vent Size: 500 mm x 1000 mm (W x L)

Key Insights

• The Venturi box ridge vent demonstrates a significantly higher ventilation rate compared to the gravity ridge vent under all wind directions and angles.

• Even at lower wind velocities, the Venturi ridge vent maintains a superior performance due to its advanced design.

This data highlights the enhanced efficiency and adaptability of the Venturi ridge vent in varying environmental conditions. Its innovative design ensures optimal ventilation, making it a reliable solution for long-term usage.
